Composite Laminated Shims



Laminated Shims in INTERCOMPOSITE®




Documentation to Download - US Letter Size
Letter - Inch
123 KB

Documentation to Download - A4 Size
A4 - Metric
123 KB

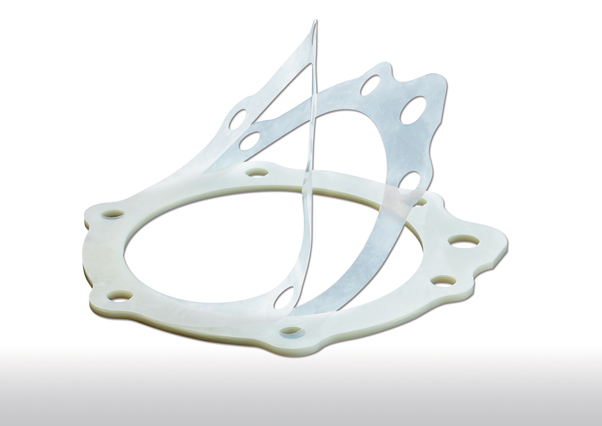

Overview of INTERCOMPOSITE® laminated shims



INTERCOMPOSITE® laminated shim

is a unique LAMECO material, designed and patented by Daniel GASTEL, made of a polyethylene glycol terephthalate film obtained by a slit-die extrusion process, followed by a double-drawing.

Click on the images below for larger photos and further information:







Advantages of INTERCOMPOSITE® laminated shims



Lightness
As an answer to a weight saving requirement. INTERCOMPOSITE® is one of the lightest of laminated materials.

Good physical, mechanical, thermal and chemical characteristics
INTERCOMPOSITE® is twice as light as Aluminum, but with equivalent thermal resistance. See the tables of characteristics here below.

Anti-fretting
INTERCOMPOSITE® is a total barrier against the galvanic coupling caused by surface contact of different metallic alloys. No further surface treatment is required.

Adaptation to curved shapes
INTERCOMPOSITE® has the property to immediately adapt itself to most curves profiles without any loss of precision. And this can be performed in site.

Facility and rapidity of use
You can peel INTERCOMPOSITE® with your forefinger (no tools being necessary) and once peeled the sheets are reusable.

Safety
INTERCOMPOSITE® is easily peeled without risk of finger cuts.

Low cost
INTERCOMPOSITE® is the least expensive of all our laminated materials.



Characteristics of INTERCOMPOSITE® laminated shims




Inertness to Acids Good Average Weak
Hydrochloric at 18 % at 35 %
Sulphuric at 60 %   concentrated
Glacial acetic acid √
Nitric   at 35 % fuming
Inertness to Bases Good Average Weak
Liquid ammonia   at 12 % concentrated
10% Caustic potash solution     √
10% Sodium hydroxide solution     √
Inertness to Solvents Good Average Weak
Ethyl acetate √
Acetone √
Benzene √
Crezols     √
Dioxane √
Fraon √
Phenols     √
Carbontetrachloride √
Trichlorethylene √
Xylene √
Miscellaneous Good Average Weak
Oil - Grease and impregnating varnish √
Impregnating varnish √
Mould fungus √
Properties of INTERCOMPOSITE® laminated shims Values Units Test Conditions
Elongation At Rupture: longitudinal direction
transverce direction ≤ 23µ		 60
130		 % ASTM D 882
Tensile Stress To Provoke An Elongation Of 5 %: longitudinal direction
transverce direction ≤ 23µ		 15,00
10,00		 Kg / mm2 ASTM D 882
Modulus Of Elasticity At 0,5 % Elongation: longitudinal direction
transverce direction ≤ 23µ		 700
380		 Kg / mm2 ASTM D 882
Resistance To Shock (DART TEST) 400 g.cm / cm ASTM D 1709 - 62T Films 23µ
Resistance To Tear Propagation 16 a 20 g. cm / cm ASTM D 1004 - 56
Elmendorf Films 23µ
Bursting Strength > 5 Kg / cm2 Lhomargy Films 23µ
Folding Resistance > 15 000 foldings Films 125µ
Properties Values Units Test Conditions
Specific Gravity 1,395   ASTM 1505 - 60T
Refraction Coefficient 1,64 * at 23 °C
Water Absorption < 0,5 % Water Weight after prolonged immersion
Properties Values Units Test Conditions
Softening Point 500 / 260 °F / °C Differential thermal analysis
Maximum Service Temperature 428 / 220 for short periods
266 / 130 (class B) for prolonged periods		 °F / °C
°F / °C
Minimum Service Temperature - 356 / -180 °F / °C In liquid nitrogen
Specific Heat 0,3 cal. g. °C
Coefficient of linear expansion 2.10-5   per °C
Temperature conductivity 3,5. 10-4 cal./cm. Sec. °C



Available thicknesses for laminated shims in INTERCOMPOSITE®


Specific Weight Thicknesses of Laminations in inches / mm
.0005
0,012		 .0007
0,019		 .0009
0,023		 .002
0,05		 .003
0,075		 .004
0,1		 .008
0,2

1,395 √ √ √ √ √ √ √


Material Specific Weight Weight-saving
1.395
Aluminum 2.8 200.72%

For more information:

INTERCOMPOSITE Trademark Registered, France: Patent No. FR 2 572 411 B1
