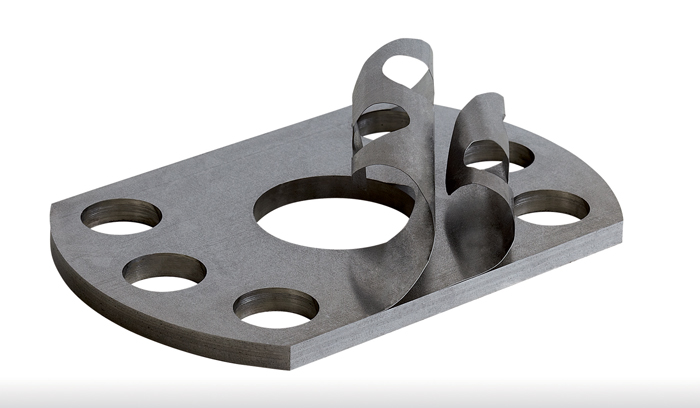

Laminated Shims
Materials, Weights & Thicknesses
LAMECO high-tech shims come in a wide choice of laminated materials:
Aluminum
Brass
COBRA.X®
DUOPEEL®
INTERCOMPOSITE®
INSTANT-PEEL®
Polyimide Plastic
Stainless Steel
Steel
SILENTLINE®
Titanium
X.FIBER®
Letter - Inch
| Standard / Materials | Specific weight | Thicknesses of laminations in inches / mm Standard | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STD | AISI SAE |
UNS | EN | BS | ISO | .0002 0,005 |
.0004 0,01 |
.0005 0,012 |
.0007 0,019 |
.0009 0,023 |
.001 0,025 |
.002* 0,05 |
.003* 0,075 |
.004 0,1 |
.0043 0,11 |
.008 0,2 | |
| Aluminum | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS1 | 1200 | A91200 | 1200 | 1200 | Al99,0 | 2.8 | √ | √ | |||||||||
| LS2 | 5052* | A95052 | 5052 | 5052 | AlMg2,5 | 2.8 | √ | √ | |||||||||
| LS18 | 1050 | A91050 | 1050 | 1050A | Al99,5 | 2.8 | √ | √ | √ | ||||||||
| LS19 | 1100 | A91100 | 1100 | 1100 | Al99,0Cu | 2.71 | √ | √ | |||||||||
| Brass | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS3 | C27200, C27700 | CuZn37 | CZ108 | CuZn37 | 8.5 | √ | √ | √ | √ | ||||||||
| Stainless Steel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS4 | 302* | S30200 | 1.4300, 1.4310 | 304S31 | 8.2 | √ | √ | √ | |||||||||
| LS5 | 304* | S30400 | 1.4301 1.4350 |
304S15 304S16 |
8.2 | √ | √ | √ | √ | √ | |||||||
| LS6 | 304L | S30403 | 1.4306 | 304S11 | 8.2 | √ | √ | √ | |||||||||
| LS7 | 316 | S31600 | 1.4401 1.4036 |
316S16 316S33 |
8.2 | √ | √ | ||||||||||
| LS8 | 316L | S31603 | 1.4404 1.4435 |
316S12 316S13 |
8.2 | √ | √ | √ | |||||||||
| Steel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS9 | 1010 | G10100 | 1.1121 | 040A10 | 1010 | 8.2 | √ | √ | √ | √ | |||||||
| Titanium | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS10 | Ti Gr1* | R50250 | 3.7025 | 2TA1 | 5832-2 | 4.5 | √ | √ | √ | √ | |||||||
| LS11 | Ti Gr2 | R50400 | 3.7035 | TA 2 | 5832-2 | 4.5 | √ | √ | √ | ||||||||
| INTERCOMPOSITE® 1 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS12 | Polymer / epoxy / polyester | 1.395 | √ | √ | √ | √ | √ | √ | √ | ||||||||
| DUOPEEL® 2 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS13** | Metalized polyester | 1.395 | √ | √ | √ | √ | |||||||||||
| X.FIBER® 3 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS15** | Carbon fabric | 1.05 | √ | ||||||||||||||
| LS16 | PLUS glass fabric | 1.35, 1.37, 1.39 | √ | √ | √ | ||||||||||||
| COBRA.X® 4 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS17 | BCRW fabric | 1 | √ | ||||||||||||||
| Polyimide Plastic | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| LS20 | Polyimide | 1.42 | √ | ||||||||||||||
| Brass in INSTANT-PEEL® 5 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| IPLS3 | C27200, C27700 | CuZn37 | CZ108 | CuZn37 | 8.5 | √ | √ | √ | |||||||||
| Stainless Steel in INSTANT-PEEL® | |||||||||||||||||
| IPLS4 | 302 | S30200 | 1.4300, 1.4310 | 304S31 | 8.2 | √ | √ | √ | |||||||||
| IPLS5 | 304 | S30400 | 1.4301 1.4350 |
304S15 304S16 |
8.2 | √ | √ | √ | |||||||||
| IPLS6 | 304L | S30403 | 1.4306 | 304S11 | 8.2 | √ | √ | √ | |||||||||
| IPLS7 | 316 | S31600 | 1.4401 1.4036 |
316S16 316S33 |
8.2 | √ | √ | ||||||||||
| IPLS8 | 316L | S31603 | 1.4404 1.4435 |
316S12 316S13 |
8.2 | √ | √ | √ | |||||||||
| Steel in INSTANT-PEEL® | |||||||||||||||||
| IPLS9 | 1010 | G10100 | 1.1121 | 040A10 | 1010 | 8.2 | √ | √ | √ | ||||||||
| Titanium in INSTANT-PEEL® | |||||||||||||||||
| IPLS10 | Ti Gr1* | R50250 | 3.7025 | 2TA1 | 5832-2 | 4.5 | √ | √ | √ | ||||||||
| IPLS11 | Ti Gr2 | R50400 | 3.7035 | TA 2 | 5832-2 | 4.5 | √ | √ | √ | ||||||||
| Stainless Steel in SILENTLINE® 6 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||
| SLS4 | 302 | S30200 | 1.4300, 1.4310 | 304S31 | 8.2 | √ | √ | √ | |||||||||
| SLS5 | 304 | S30400 | 1.4301 1.4350 |
304S15 304S16 |
8.2 | √ | √ | √ | √ | √ | |||||||
| SLS6 | 304L | S30403 | 1.4306 | 304S11 | 8.2 | √ | √ | √ | |||||||||
| SLS7 | 316 | S31600 | 1.4401 1.4036 |
316S16 316S33 |
8.2 | √ | √ | ||||||||||
| SLS8 | 316L | S31603 | 1.4404 1.4435 |
316S12 316S13 |
8.2 | √ | √ | √ | |||||||||
| Steel in SILENTLINE® | |||||||||||||||||
| SLS9 | 1010 | G10100 | 1.1121 | 040A10 | 1010 | 8.2 | √ | √ | √ | √ | |||||||
* International norm MIL-S-22499, MIL-DTL-22499, AMS-DTL-22499.
** LS14 has been superseded.
LAMECO is approved to produce parts to many other specifications. Please inquire to see if we can meet your specifications.
If you do not know which laminated material you should choose visit our F.A.Q. page.
- 1 INTERCOMPOSITE®: Trademark Registered, France: Patent No. FR 2 572 411 B1. For more information: Composite Laminated Shims
- 2 DUOPEEL®: Trademark Registered, France: Patent No. FR 2 944 990 B1, Europe: No. EP 2 248 661 B1. For more information: PET/Polyester Laminated Shims
- 3 X.FIBER®: Trademark Registered, Europe: Patent No. EP 1 444 094 B1, Canada: CA 2 464 337 C, US: US 8,518,839 B2. For more information: High-Resistance Composite Laminated Shims
- 4 COBRA.X®: Trademark Registered, Europe: Patent Pending, Canada: Patent Pending, US: Patent Pending.
- 5INSTANT-PEEL®: Trademark Registered, Europe: Patent No. EP 2 849 938 B1, Canada: Patent Pending, US: Patent No. US 9,381,725 B2. For more information: Supremely peelable metallic laminated shims
- 6 SILENTLINE®: Trademark Registered, Europe: Patent No. EP 0 667 233 B1. For more information: Noise Abatement Laminated Shims
