Laminated Shims
Fully peelable shim
Uses, Photo Gallery & Videos

Lameco shims find their application in all fields of activity.


Materials, Thickenesses & Weights

LAMECO high-tech shims come in a wide choice of laminated materials:

and also in our unique and innovative laminated materials in composite or metals which are easily peelable by finger alone without tools:

and finally in our patented material made of composite and laminated metal which reduces the noise pollutions:


Composite Laminated Shims


is twice as light as Aluminum.


The visual bilaminate.


The composite with high thermal resistance.


High-Resistance Composite Laminated Shims

X.FIBER
up to eight times lighter in weight than steel or brass with higher thermal performance and similar compressive strength.
This is LAMECO’S premium product– a world beater much sought after by the aviation industry.

X.FIBER HIGH-DENSITY logo
up to six times lighter in weight than steel or brass with very similar compressive strength.


Supremely peelable metallic laminated shims


INSTANT-PEEL® Laminated Shims are as easy to peel as shims made with composites


Curved laminated shims


Curved laminated shims are delivered ready-to-use. There is no longer any need to shape shims before using them.


Noise Abatement Laminated Shims

Silentline
reduces high frequencies by 50%.


Self-Adhesive Laminated Shims

logo PeelStick
facilitates adjustment in vertical positions and in areas where screws cannot be used.


Built-in Memory Laminated Shims

Qar.X Data-Shim
obviates the need for stamp-marking of parts.


LAMECO Standard

You will find the latest version of our company standard on laminated shims materials: reference LS 5256 here.


Quality and Inspection

LAMECO is an ISO 9001:2015 and AS/EN/JISQ 9100:2016 certified; family owned and operated premier quality manufacturing company which has been in business for over 47 years.


F.A.Q.

Please do not hesitate to contact us: , if you have not found the information you were looking for on the 'Frequently Asked Questions' page or on this site.


Product Documentation to Download

You will find the latest version of our company literature in PDF format here.

LAMECO Catalog
Request For Quote

Please send us your enquiry by e-mail: supplying the following details:

  • Dimensions (including Total Thickness)
  • Thicknesses of individual laminations
  • Materials and
  • Quantities.
  • Please add a drawing/print if you have one.

X.FIBER HIGH-DENSITY® Laminated Shims

The high-performance composite material

Home ‣ English ‣ X.FIBER HIGH-DENSITY® Laminated Shims
French Italian German Spanish Dutch Russian Chinese Vietnamese

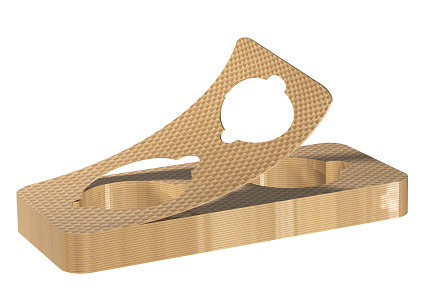

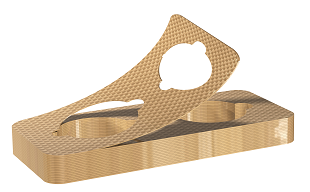

High resistance laminated composite shim

X.FIBER HIGH-DENSITY® is a laminated material designed by Daniel GASTEL. This composite material takes the form of a multitude of woven fibreglass sheets.
The sheets are interlinked by a thermosetting resin, the elaboration of which bestows on the resulting final material outstanding technical performances and excellent peelability.
Benefits Thicknesses & Weights

Documentation to Download - US Letter Size Letter - Inch   Documentation to Download - A4 Size A4 - Metric


Benefits of X.FIBER HIGH-DENSITY® peel shims

Lightness
It is an appropriate response to a requirement for lighter materials (to achieve greater autonomy or payload). X.FIBER HIGH-DENSITY® is, with INTERCOMPOSITE® and DUOPEEL®, one of the lightest of all our peeloff materials (up to six times lighter in weight than steels or brass!).

Material Specific Weight Weight-saving
X.FIBER HIGH-DENSITY® 1,35 -
Stainless Steel 8,2 6,07 x
Brass 8,5 6,3 x

Robustness
In addition to being a lightweight product, X.FIBER HIGH-DENSITY® is also extremely robust. Indeed it is resistant to:

  • very high compressive forces, without entanglement,
  • aux attaques chimiques,
  • chemical attacks,
  • sea air.

Resistance
X.FIBER HIGH-DENSITY® mechanical properties remain unaffected by the rise in temperature. Thus this product can be exposed without damage to heat exceeding 932°F (500°C)

Rapidity
The sheets can be peeled by hand, without the need for tools of any kind. This composite material removes any risk of injury during the peeling operation.

Ingenuity and Economy
Once they have been peeled, the sheets remain fl at and free of deformation. They remain fully re-useable.

Anti-Fretting
X.FIBER HIGH-DENSITY® is a total barrier against the galvanic coupling caused by surface contact of different metallic alloys. No further surface treatment is required.

Thicknesses & Weights available for X.FIBER HIGH-DENSITY® peel shims

SPEC. Specific Weight Thicknesses of laminations in inches / mm
Standard
.004 / 0,1
9
LS21 1,35 √

For more information:

X.FIBER HIGH-DENSITY®: Trademark Registered, Patents Pending.
